SM12SUB70-W 12" Surface Mount Subwoofer with 60-Watt 70V/100V Transformer - White
Zaloguj się, abyśmy mogli powiadomić Cię o odpowiedzi

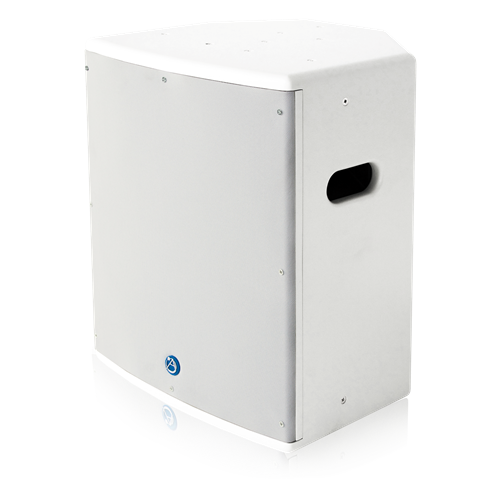

The AtlasIED SM12SUB70 is designed for 8Ω and 70.7V distributed audio applications where low frequency enhancement is desired. This model features a unique compact cabinet design with multiple ¼"-20 inserts to allow easy suspension or wall mounting. The SM12SUB70 includes a built in 18dB / octave three-pole passive crossover network coupled to a long-excursion 12" woofer housed in multi-angle wood enclosure system. The passive crossover eliminates the need for a separate crossover or dedicated amplifier to power the speaker. A premium 70.7V transformer allows the SM12SUB70 to be paralleled with any 70.7V commercial audio system to provide extended low frequency response and more overall audio impact for foreground music systems(Unit is also 8Ω compatible).
Features- Multiple ¼"-20 Inserts, Provide Fly Points for a Variety of Mounting Configurations
- Includes Internal, High Efficiency, 60 Watt 70.7V/100V Transformer (May Be Bypassed for 8Ω Operation)
- Barrier Strip Input for 70.7V/100V/8Ω or Parallel 4 Pole Speak-ON™ Input,
- (8Ω Only)
- 250W RMS Power Handling
- Unique Input Panel Allows Use of Standard 4" Square Box Cover for Applications Where Flex Conduit is Required for Termination
- Durable, Rough-Coat Finish and Heavy-Duty Grille Assembly
- Optional Bracket for Wall Mounting
- Omnimount™ Compatible
Marka:
Atlas IED
Typ produktu:
System subwooferowy
Parametry podstawowe
Kolor:
White
Pobór mocy:
150W (RMS)
Zastosowanie:
High-Level Foreground Music Systems, General Live Sound Reinforcement (installed or Portable)
Materiał:
Wood (Enclosure)
Wydajność
Częstotliwość:
45 to 125Hz
Wejścia i porty
Typ interfejsu I/O:
Barrier Strip
Typ złącza wejściowego:
Barrier Strip
Wymiary
Szerokość:
36.8cm
Głębokość:
35.7cm
Wysokość:
48.3cm
Waga:
11.7kg
Waga wysyłki:
11.7kg
Inne
Napięcie znamionowe:
70.7V, 100V
Certyfikacje, standardy:
CE
Nie znaleziono opinii
