ALA5TAW EN54-24 Certified 5 Speaker Full Range Line Array Speaker System (white finish)
Zaloguj się, abyśmy mogli powiadomić Cię o odpowiedzi

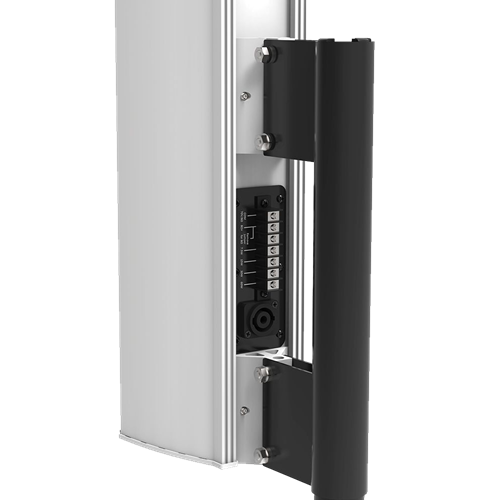

The EN54-24 certified ultra-compact ALA5TAW column line array loudspeaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA5TAW’s transducer configuration combines five tight packed 3" (76mm) full range drivers and two 22mm high frequency tweeters in an extruded aluminium housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in applications coupled with a portable A-Line subwoofer system.
Features- 45° Vertical Coverage
- 135° Horizontal Coverage
- Two (2) High Frequency Tweeters
- Five (5) Proprietary 3" (76mm) Full Range Drivers
- Barrier Strip and NL-4 Terminals
- Lightweight Aluminium Housing
- Wall Mount Bracket Included
Marka:
Atlas IED
Typ produktu:
Głośnik kolumnowy
Parametry podstawowe
Kąt pokrycia:
135° (Horizontal)x45° (Vertical)
Konfiguracja głośnika:
Two Way
Poziom głośności:
113.8dB (Continuous), 116.8dB (Peak 6Ω), 91dB (4m EN54-24/Passive-100V/60W)
Kolor:
White
Pobór mocy:
125W (Continuous), 250W (Program)
Zastosowanie:
Challenging Acoustic Space, Architecturally Sensitive Space, Houses of Worship, Transportation Hub, Retail Space, Conference Room, Lecture Theatre, Gymnasium, Convention Center, Museum, Stadium Concourse, Multipurpose Venue
Materiał:
Extruded Aluminium (Enclosure), Powder-Coated Aluminium (Grill), Aluminium (Baffle), Powder-Coated CRS (Mount)
Wydajność
Częstotliwość:
137Hz to 20kHz
Ocena mocy wzmacniacza:
375W@6Ω
Wejścia i porty
Typ interfejsu I/O:
Barrier Terminal
Typ złącza wejściowego:
Barrier Terminal for Transformer & 6Ω Inputs/NL4 for 6Ω Input
Wymiary
Szerokość:
11.7cm
Głębokość:
13.8cm
Wysokość:
42.2cm
Waga:
5.1kg (Unit with Wall Mount Bracket)
Waga wysyłki:
7kg
Inne
Napięcie znamionowe:
70V, 100V
Certyfikacje, standardy:
EN54-24 Certified
