ALA15T 15 Speaker Full Range Line Array Speaker System
Zaloguj się, abyśmy mogli powiadomić Cię o odpowiedzi

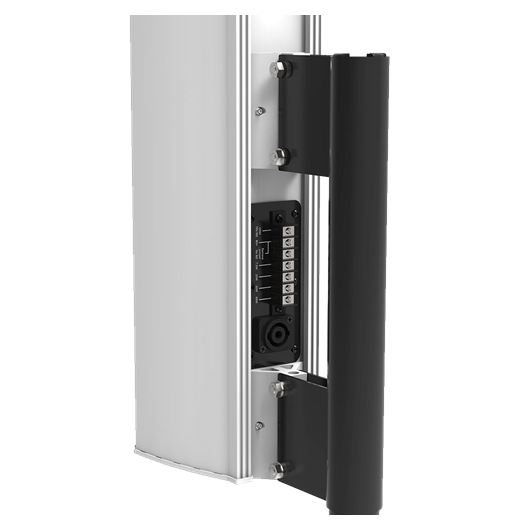

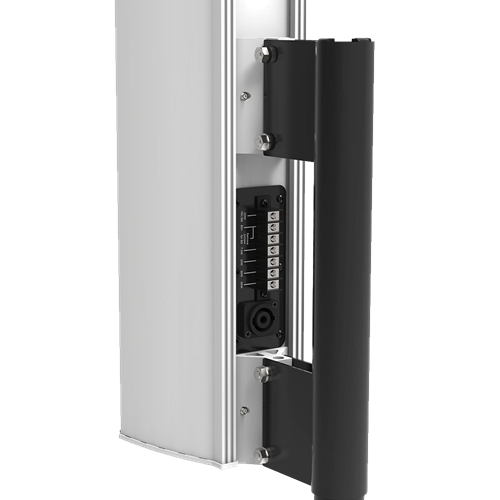

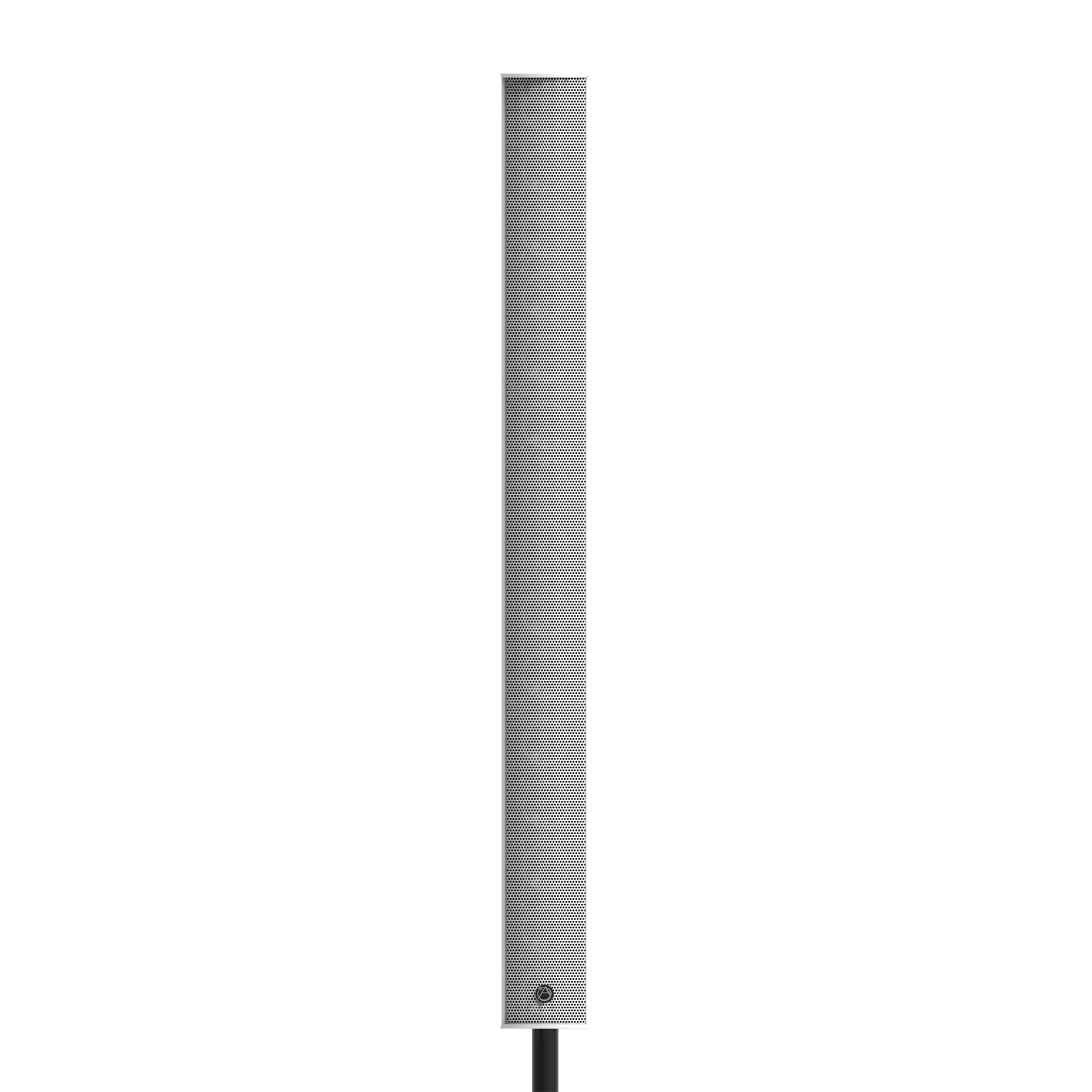

The ALA15T column line array speaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA15T’s transducer configuration combines fifteen tight packed 3" full range drivers and four 3/4" high frequency tweeters in an extruded aluminium housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with our A-Line subwoofer.
Features- 45° Vertical Coverage
- 135° Horizontal Coverage
- Fifteen (15) Proprietary 3" (76mm) Full Range Drivers
- Four (4) High Frequency Tweeters
- Barrier Strip and NL-4 Terminals
- Lightweight Aluminium Housing
- Wall Mount Bracket Included
Marka:
Atlas IED
Typ produktu:
Głośnik kolumnowy
Parametry podstawowe
Kąt pokrycia:
135° (Horizontal)x40° (Vertical)
Konfiguracja głośnika:
Two Way
Poziom głośności:
120dB (Continuous), 123dB (Peak 8Ω)
Kolor:
Black, Chameleon Silver
Pobór mocy:
250W (Continuous), 500W (Program)
Zastosowanie:
Challenging Acoustic Space, Architecturally Sensitive Space, Houses of Worship, Transportation Hub, Retail Space, Conference Room, Lecture Theatre, Gymnasium, Convention Center, Museum, Stadium Concourse, Multipurpose Venue
Materiał:
Extruded Aluminium (Enclosure), Powder-Coated Aluminium (Grill), Aluminium (Baffle), Powder-Coated CRS (Mount)
Wydajność
Częstotliwość:
160Hz to 20kHz
Ocena mocy wzmacniacza:
600W@8Ω
Wejścia i porty
Typ interfejsu I/O:
Barrier Terminal
Typ złącza wejściowego:
Barrier Terminal for Transformer & 8Ω Inputs/NL4 for 8Ω Input
Wymiary
Szerokość:
11.7cm
Głębokość:
13.7cm
Wysokość:
125cm
Waga:
13.4kg
Inne
Napięcie znamionowe:
70V, 100V
